#include <TCLProcessor.h>

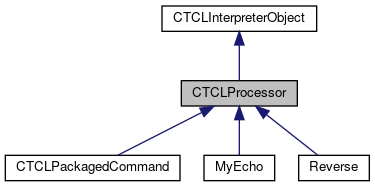

Inheritance diagram for CTCLProcessor:

[legend]

Collaboration diagram for CTCLProcessor:

Public Member Functions
	CTCLProcessor (const std::string sCommand, CTCLInterpreter *pInterp)

	CTCLProcessor (const char pCommand, CTCLInterpreter pInterp)

virtual	~CTCLProcessor ()

std::string	getCommandName () const

virtual int	operator() (CTCLInterpreter &rInterpreter, CTCLResult &rResult, int argc, char **argv)=0

virtual void	OnDelete ()

void	Register ()

void	Unregister ()

void	RegisterAll ()

void	UnregisterAll ()

int	ParseInt (const char pString, int pInteger)

int	ParseInt (const std::string &rString, int *pInteger)

int	ParseDouble (const char pString, double pDouble)

int	ParseDouble (const std::string &rString, double *pDouble)

int	ParseBoolean (const char pString, TCLPLUS::Bool_t pBoolean)

int	ParseBoolean (const std::string &rString, TCLPLUS::Bool_t *pBoolean)

virtual void	preCommand ()

virtual void	postCommand ()

virtual void	preDelete ()

virtual void	postDelete ()

CTCLInterpreter *	Bind (CTCLInterpreter &binding)

CTCLInterpreter *	Bind (CTCLInterpreter *binding)

Public Member Functions inherited from CTCLInterpreterObject
	CTCLInterpreterObject (CTCLInterpreter *pInterp)

	CTCLInterpreterObject (const CTCLInterpreterObject &aCTCLInterpreterObject)

CTCLInterpreterObject &	operator= (const CTCLInterpreterObject &aCTCLInterpreterObject)

int	operator== (const CTCLInterpreterObject &aCTCLInterpreterObject) const

CTCLInterpreter *	getInterpreter () const

CTCLInterpreter *	Bind (CTCLInterpreter &rBinding)

CTCLInterpreter *	Bind (CTCLInterpreter *pBinding)

Static Public Member Functions
static std::string	ConcatenateParameters (int nArguments, char *pArguments[])

static int	MatchKeyword (std::vector< std::string > &MatchTable, const std::string &rValue, int NoMatch=-1)

Protected Member Functions
void	NextParam (int &argc, char **&argv)

Protected Member Functions inherited from CTCLInterpreterObject
CTCLInterpreter *	AssertIfNotBound ()

Detailed Description

This class is an abstract base class for commands written against the argc/argv interface of Tcl/Tk. Note that since this interface is supposedly due to be deprecated with Tcl 9.0, this is actually written with the aid of an adaptor class (CTCLCompatibilityProcessor) to work with only the object interface.

This is a complete rewrite of this class since SpecTcl-3.0 however it should be compatible with older uses.

Constructor & Destructor Documentation

◆ CTCLProcessor()

CTCLProcessor::CTCLProcessor	(	const char *	pCommand,
		CTCLInterpreter *	pInterp
	)

Construct from the char* version of the command name.

◆ ~CTCLProcessor()

CTCLProcessor::~CTCLProcessor ( )

virtual

Destruction requires unregistration, if possible, and deletion of the compatibility processor.

Member Function Documentation

◆ Bind()

CTCLInterpreter * CTCLProcessor::Bind ( CTCLInterpreter * binding )

Binding must also rebind the adaptor.

◆ ConcatenateParameters()

std::string CTCLProcessor::ConcatenateParameters	(	int	nArguments,
		char *	pArguments[]
	)

static

Concatenates a parameter set into a single string. This can be used by command interpreters which will need to further parse their input (e.g an epxression evaluator may want to act globally on the expression, rather than a token at a time). Spaces are put between each parameter.

Parameters

nArguments	Number of parameters to concatenate.
pArguments[]	: char* Pointer to the set of parameters to concatenate.

Returns: string

Return values

String containing the concatenation of the parameters.

Note: Command invocations set argv[0] to be the command text. In order to be policy free, we act as if that's not the case, therefore if the client really only wants the parameters, they should pass a pointer to argv[1]

◆ getCommandName()

string CTCLProcessor::getCommandName ( ) const

Return the name of the command. This is the initial command name, not the name after any renaming e.g.

◆ MatchKeyword()

int CTCLProcessor::MatchKeyword	(	std::vector< std::string > &	MatchTable,
		const std::string &	rValue,
		int	NoMatch = `-1`
	)

static

Match a keyword, rValue, against the set of keywords in a MatchTable. If no match can be found, the NoMatch value is returned. Otherwise the index into the table is returned.

Parameters

MatchTable	: vector<string>& vector of legitimate keyword strings.
rValue	: const string& The keyword to match against the table.
NoMatch	: int Value to return if no match is found.

Returns: int

Return values

the	index into MatchTable where a string matched rValue.
NoMatch	if there is no such index.

◆ OnDelete()

void CTCLProcessor::OnDelete ( )

virtual

Called when the command is being deleted. The default action is to do nothing.

Reimplemented in Reverse.

◆ ParseBoolean()

int CTCLProcessor::ParseBoolean	(	const char *	pString,
		TCLPLUS::Bool_t *	pBoolean
	)

Parses a string as a boolean. True values are any of: 1,true,on, or yes False values are any of 0, false, off, or no.

Parameters

pString	const char* Pointer to the string to parse.
pBool	Bool_t* Pointer to the result boolean.

Returns: int

Return values

TCL_OK	if parse worked.
TCL_ERROR	and instantiating a CTCLResult object on the currently bound interpreter will enable a textual reason for the parse failure to be retrieved.

◆ ParseDouble()

int CTCLProcessor::ParseDouble	(	const char *	pString,
		double *	pDouble
	)

Parses a string as a double using the currently bound interpreter.

Parameters

pString	char* String to parse.
pDouble	double* Points to where to put value to parse.

Returns

Return values

TCL_OK	- If ok.
TCL_ERROR	and a CTCLResult can be instantiated on the bound interpreter to retrieve a textual reason for the parse failure.

◆ ParseInt()

int CTCLProcessor::ParseInt	(	const char *	pString,
		int *	pInteger
	)

Uses the currently bound interpreter to parse a parameter as an integer.

 \param  pString : char*
       Pointer to the string to parse as an integer.
 \param pInteger : int*
      Pointer to the integer to fill in.
 \return int
 \retval   TCL_OK if ok,
 \retval  TCL_ERROR If not:
          client should instantiate a
          CTCLResult object on the bound interpreter to get detailed error
          information.

◆ postCommand()

void CTCLProcessor::postCommand ( )

virtual

This is a hook that can be overiddent by derived classes. It is called just after the execution of operator()... success or failure.

Reimplemented in Reverse.

◆ postDelete()

void CTCLProcessor::postDelete ( )

virtual

Hook for derived classes to get control just after OnDelete

◆ preCommand()

void CTCLProcessor::preCommand ( )

virtual

This is a hook that can be overridden by derived classes. It is called just prior to the execution of operator().

Reimplemented in Reverse.

◆ preDelete()

void CTCLProcessor::preDelete ( )

virtual

Hook for derived classes to get control just prior to OnDelete.

◆ Register()

void CTCLProcessor::Register ( )

Register the object with the interpreter. We allow multiple registrations (subsequent are no-ops).

◆ RegisterAll()

void CTCLProcessor::RegisterAll ( )

Register all is the same as register.

◆ UnregisterAll()

void CTCLProcessor::UnregisterAll ( )

Unregister all just does a caught unregister on the adaptor.

The documentation for this class was generated from the following files:

libtclplus/include/tclplus/TCLProcessor.h
libtclplus/tclplus/TCLProcessor.cpp
