Defines a namespace used to store information about known DDAS modules. More...

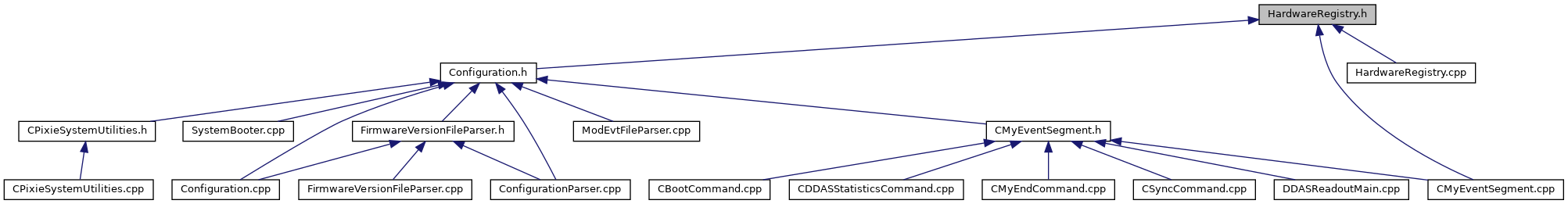

This graph shows which files directly or indirectly include this file:

Classes
struct	DAQ::DDAS::HardwareRegistry::HardwareSpecification
	Generic hardware specs for hardware types. More...

Namespaces
	DAQ

	DAQ::DDAS

	DAQ::DDAS::HardwareRegistry
	The HardwareRegistry namespace is where information about all known DDAS modules are stored.

Enumerations
enum	DAQ::DDAS::HardwareRegistry::HardwareType { DAQ::DDAS::HardwareRegistry::RevB_100MHz_12Bit =1 , DAQ::DDAS::HardwareRegistry::RevC_100MHz_12Bit =2 , DAQ::DDAS::HardwareRegistry::RevD_100MHz_12Bit =3 , DAQ::DDAS::HardwareRegistry::RevF_100MHz_14Bit =4 , DAQ::DDAS::HardwareRegistry::RevF_100MHz_16Bit =5 , DAQ::DDAS::HardwareRegistry::RevF_250MHz_12Bit =6 , DAQ::DDAS::HardwareRegistry::RevF_250MHz_14Bit =7 , DAQ::DDAS::HardwareRegistry::RevF_250MHz_16Bit =8 , DAQ::DDAS::HardwareRegistry::RevF_500MHz_12Bit =9 , DAQ::DDAS::HardwareRegistry::RevF_500MHz_14Bit =10 , DAQ::DDAS::HardwareRegistry::RevF_500MHz_16Bit =11 , DAQ::DDAS::HardwareRegistry::Unknown =0 }
	The HardwareType enum. More...

Functions
void	DAQ::DDAS::HardwareRegistry::configureHardwareType (int type, const HardwareSpecification &spec)

HardwareSpecification &	DAQ::DDAS::HardwareRegistry::getSpecification (int type)
	Retrieve a reference to the current hdwr specification for a hardware type. More...

void	DAQ::DDAS::HardwareRegistry::resetToDefaults ()

int	DAQ::DDAS::HardwareRegistry::computeHardwareType (int hdwrVersion, int adcFreq, int adcRes)
	Compute the hardware type from input specifications. More...

int	DAQ::DDAS::HardwareRegistry::createHardwareType (int hdwrVersion, int adcFreq, int adcRes, double clockCalibration)
	Create an enumerated hardware type from input specifications. More...

bool	operator== (const DAQ::DDAS::HardwareRegistry::HardwareSpecification &lhs, const DAQ::DDAS::HardwareRegistry::HardwareSpecification &rhs)
	Check if two HardwareSpecifications are the same. More...

Detailed Description

Defines a namespace used to store information about known DDAS modules.

Function Documentation

bool operator==	(	const DAQ::DDAS::HardwareRegistry::HardwareSpecification &	lhs,
		const DAQ::DDAS::HardwareRegistry::HardwareSpecification &	rhs
	)

Check if two HardwareSpecifications are the same.

Parameters

lhs,rhs Left- and right-hand objects for comparison.

Return values

true	If lhs and rhs are equal.
false	Otherwise.
