CudaFitEngineAnalytic.cu File Reference

Provide CUDA fit engines for single- and double-pulse fits. More...

#include <stdexcept>
#include <math.h>
#include "jacobian_analytic.h"

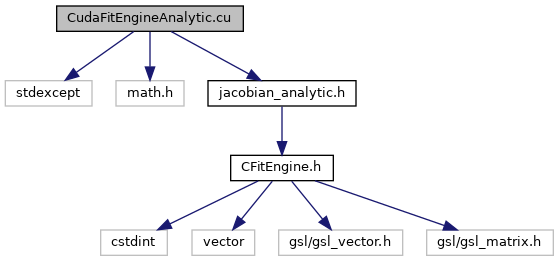

Include dependency graph for CudaFitEngineAnalytic.cu:

Functions
__global__ void	residual1 (void *tx, void *ty, void *res, unsigned len, float C, float A, float k1, float k2, float x1)
	Compute the residual for a point in the trace with a single pulse fit. More...
__global__ void	jacobian1 (void *tx, void *ty, void *jac, unsigned len, float A, float k1, float k2, float x1)
	Compute the Jacobian at a single point of the trace for a single pulse fit. More...
__global__ void	residual2 (void *xtc, void *ytc, void *res, unsigned npts, float C, float A1, float k11, float k12, float x1, float A2, float k21, float k22, float x2)
	Computes the double-pulse residual pointwise parallel. More...
__global__ void	jacobian2 (void *xtc, void *jac, unsigned npts, double A1, double k1, double k2, double x1, double A2, double k3, double k4, double x2, double C)
	Compute the double-pulse Jacobian on a point of the pulse. The Jacobian matrix is an npts x 9 matrix. More...

Detailed Description

Provide CUDA fit engines for single- and double-pulse fits.

Note

This requires that the CUDA compiler be used.

Experimentally the Jacobian for double pulses needs to be double precision so we've got functions named XXXX which are float and identical functions named XXXXd which are double.

Function Documentation

jacobian1()

__global__ void jacobian1	(	void *	tx,
		void *	ty,
		void *	jac,
		unsigned	len,
		float	A,
		float	k1,
		float	k2,
		float	x1
	)

Compute the Jacobian at a single point of the trace for a single pulse fit.

Parameters

tx	Pointer to the trace x coords.
ty	Pointer to the trace y coords.
jac	Pointer to the Jacobian matrix (len*5 elements)
len	Trace length.
A	Scale factor.
k1	Risetime steepeness.
k2	Decay time.
x1	Position.

jacobian2()

__global__ void jacobian2	(	void *	xtc,
		void *	jac,
		unsigned	npts,
		double	A1,
		double	k1,
		double	k2,
		double	x1,
		double	A2,
		double	k3,
		double	k4,
		double	x2,
		double	C
	)

Compute the double-pulse Jacobian on a point of the pulse. The Jacobian matrix is an npts x 9 matrix.

Parameters

xtc	x-coordinates of the trace.
jac	Jacobian matrix.
npts	Number of points in the fit.
A1,k1,k2,x1	Fit parameters for first pulse.
A2,k3,k4,x2	Fit parameters for the second pulse.
C	Constant term of the fit.

residual1()

__global__ void residual1	(	void *	tx,
		void *	ty,
		void *	res,
		unsigned	len,
		float	C,
		float	A,
		float	k1,
		float	k2,
		float	x1
	)

Compute the residual for a point in the trace with a single pulse fit.

Parameters

tx	Pointer to trace x values.
ty	Pointer to trace y values.
res	Pointer to residual values.
len	Number of trace elements.
C	Constant baseline.
A	Scale factor.
k1	Rise steepeness.
k2	Decay time.
x1	Position.

residual2()

__global__ void residual2	(	void *	xtc,
		void *	ytc,
		void *	res,
		unsigned	npts,
		float	C,
		float	A1,
		float	k11,
		float	k12,
		float	x1,
		float	A2,
		float	k21,
		float	k22,
		float	x2
	)

Computes the double-pulse residual pointwise parallel.

Parameters

xtc	x-coordinates of trace.
ytc	y-coordinates of trace.
res	Residuals to compute.
npts	Number of trace points.
C	Constant offset fit parameter.
A1	Scale factor for pulse1.
k11	k1 for pulse 1.
k12	k2 for pulse 1.
x1	Position of pulse 1
A2	Scale factof for pulse 2.
k21	k1 for pulse 2.
k22	k2 for pulse 2.
x2	Position of pulse 2.
