Stager's Configuration Interrogation

The configuration GUI consists of  a series of dialogs which prompt for information needed to configure the Stager:

• Selection of taping host and providing the password to log your user on to that host  (This is typically a daq file server system with attached tapedrive).

• Tape drive and size selection
• Readout program selection
• Stage Strategy selection.

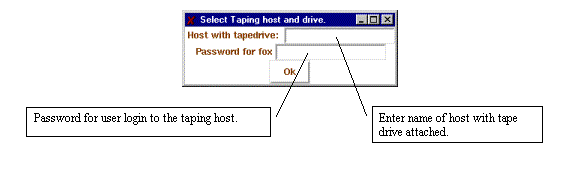

Selecting Tape host

This dialog is shown below:

Top

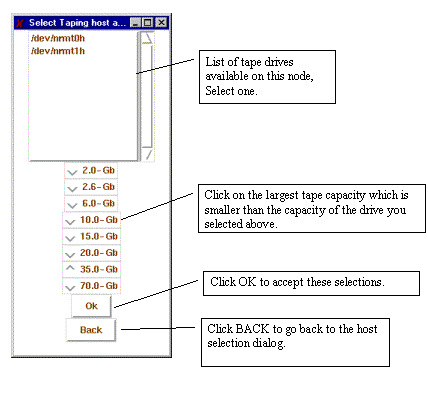

Tape Drive Selection

This dialog is shown below:

Top

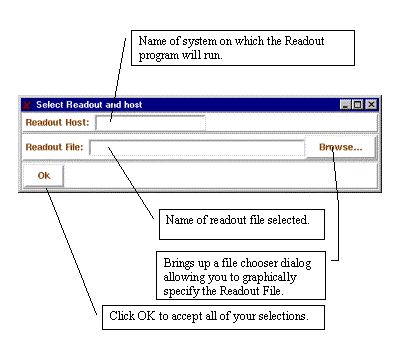

Readout Program Selection

The Readout Program Selection Dialog is shown below:

Once the Readout Host and Readout File are selected, Stager starts up the ReadoutShell gui to control this program.

Top

Stage Strategy Selection

The Stage Strategy selection dialog is shown below:

For descriptions of these two strategies, click here.
