CCAENV785 Class Reference

#include <CCAENV785.h>

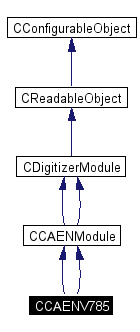

Inheritance diagram for CCAENV785:

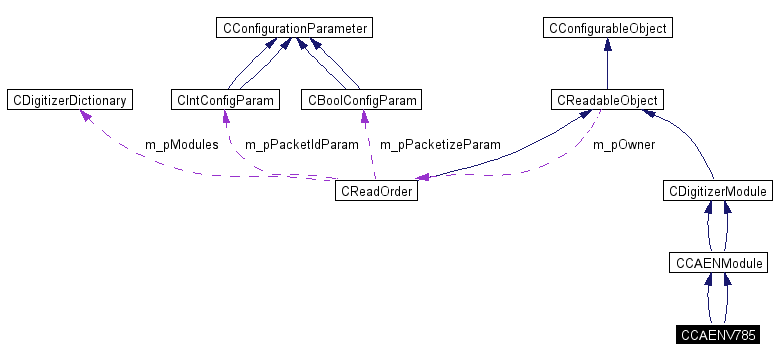

[legend]Collaboration diagram for CCAENV785:

[legend]List of all members.

Public Member Functions
	CCAENV785 (const string &rName, CTCLInterpreter &rInterp)
	~CCAENV785 ()
CAENcard *	getCard ()
virtual void	Initialize ()
virtual void	Prepare ()
virtual void	Read (DAQWordBufferPtr &rBuffer)
virtual void	Clear ()
virtual string	getType () const
	Return module type string (pure virt).
	CCAENV785 (const string &rName, CTCLInterpreter &rInterp)
	~CCAENV785 ()
CAENcard *	getCard ()
virtual void	Initialize ()
virtual void	Prepare ()
virtual void	Read (DAQWordBufferPtr &rBuffer)
virtual void	Clear ()
virtual string	getType () const
	Return module type string (pure virt).
Protected Member Functions
void	setCard (CAENcard *am_pCAENcard)
void	setCard (CAENcard *am_pCAENcard)
Private Member Functions
	CCAENV785 (const CCAENV785 &aCCAENV785)
CCAENV785 &	operator= (const CCAENV785 &aCCAENV785)
int	operator== (const CCAENV785 &aCCAENV785) const
int	operator!= (const CCAENV785 &rhs) const
	CCAENV785 (const CCAENV785 &aCCAENV785)
CCAENV785 &	operator= (const CCAENV785 &aCCAENV785)
int	operator== (const CCAENV785 &aCCAENV785) const
int	operator!= (const CCAENV785 &rhs) const
Private Attributes
CAENcard *	m_pCAENcard
	Pointer to module driver.
bool	m_fMultiEvent
	true if multievent mode.
CAENcard *	m_pCAENcard
	Pointer to module driver.

---

Detailed Description

Encapsulates the CAEN 785 peak sensing adc. this class is layered on top of Chris Maurice's CAENcard class. This class supports the following configuration keywords:

• slot n - n is the VME slot number holding the VME card.
• threshold t[32] - t are the 32 thresholds in mv. Value will be computed taking into account the full scale selection.
• keepunder b - b is "on" or "off" depending on whether or not to keep data that does not make threshold.
• keepoverflow b - b is "on" or "off" depending on whether or not to keep overflow data.
• keepinvalid b - b is "on" or "off" depending on whether or not to keep data that is strobed in when the module is busy resetting.
• card b - "on" to enable the card "off" to disable it.
• enable i[32] - 32 channel enables. Nonzero is enabled, zero disabled.
• multievent b - True to run the module in multievent mode. in multievent mode, the module is note cleared after each readout in Prepare()

Definition at line 329 of file CCAENV785.h.

---

Constructor & Destructor Documentation

CCAENV785::CCAENV785 (  const string &  rName, CTCLInterpreter &  rInterp )

Constructs a CAEN V785 readout object. The constructor does not actually create a CAENcard object. This is left to the Initialize member. Doing this two phase creation allows the user a chance to fully set the configuration parameters of the module before creating the module. This is actually necessary sinced the ADC slot is one of the configuration parameters. The main purpose of this function is to register the configuration parsing objects. Definition at line 303 of file CCAENV785.cpp.

CCAENV785::~CCAENV785 (   )

Destroys the module. We delete CCAENcard object. If the card object has not yet been created, it will be null and the deletion will be a no-op. Definition at line 314 of file CCAENV785.cpp.

CCAENV785::CCAENV785 (  const CCAENV785 &  aCCAENV785  )  [private]

CCAENV785::CCAENV785 (  const string &  rName, CTCLInterpreter &  rInterp )

CCAENV785::~CCAENV785 (   )

CCAENV785::CCAENV785 (  const CCAENV785 &  aCCAENV785  )  [private]

---

Member Function Documentation

virtual void CCAENV785::Clear (   )  [virtual]

Called to clear any pending data from the module. Reimplemented from CCAENModule.

void CCAENV785::Clear (   )  [virtual]

Called on a per event basis to clear the module after reading an event. Probably nothing has to be done here, but to be safe, we clear any pending data. Reimplemented from CCAENModule. Definition at line 381 of file CCAENV785.cpp. References CCAENModule::Clear().

CAENcard* CCAENV785::getCard (   )  [inline]

Reimplemented from CCAENModule. Definition at line 354 of file include/CCAENV785.h. References m_pCAENcard.

CAENcard* CCAENV785::getCard (   )  [inline]

Reimplemented from CCAENModule. Definition at line 354 of file CCAENV785.h. References m_pCAENcard.

virtual string CCAENV785::getType (   )  const [inline, virtual]

Return module type string (pure virt). Implements CDigitizerModule. Definition at line 376 of file include/CCAENV785.h.

virtual string CCAENV785::getType (   )  const [inline, virtual]

Return module type string (pure virt). Implements CDigitizerModule. Definition at line 376 of file CCAENV785.h.

virtual void CCAENV785::Initialize (   )  [virtual]

Initializes a module. This is the function that will actually create the underlying module driver object. The parameters are processed and used to configure it. Reimplemented from CCAENModule.

void CCAENV785::Initialize (   )  [virtual]

Called once when data acquisition starts for a run. This function deletes any existing CAENcard object and creates a new one. The card object is then configured according the the parameters maintained by the configuration subsystem. Any failure to find a configuration parameter is considered fatal and is signalled via a failed assertion. Reimplemented from CCAENModule. Definition at line 333 of file CCAENV785.cpp. References CCAENModule::Initialize().

int CCAENV785::operator!= (  const CCAENV785 &  rhs  )  const [private]

int CCAENV785::operator!= (  const CCAENV785 &  rhs  )  const [private]

CCAENV785& CCAENV785::operator= (  const CCAENV785 &  aCCAENV785  )  [private]

CCAENV785& CCAENV785::operator= (  const CCAENV785 &  aCCAENV785  )  [private]

int CCAENV785::operator== (  const CCAENV785 &  aCCAENV785  )  const [private]

int CCAENV785::operator== (  const CCAENV785 &  aCCAENV785  )  const [private]

virtual void CCAENV785::Prepare (   )  [virtual]

Called on a per event basis to prepare the card to accept the next trigger. For the CAEN modules, this is a no-op, once initialized, they're ready to go. Reimplemented from CCAENModule.

void CCAENV785::Prepare (   )  [virtual]

Called on a per event basis to prepare the card to accept the next trigger. For the CAEN V785, this is a no-op. Reimplemented from CCAENModule. Definition at line 349 of file CCAENV785.cpp. References CCAENModule::Prepare().

virtual void CCAENV785::Read (  DAQWordBufferPtr &  rBuffer  )  [virtual]

Reads an event from the card into the current event buffer Parameters: rBuffer  (DAQWordBufferPtr& [modified]). Pointer like object to the target datat buffer. Data wil be read from the ADC to the location 'pointed to by the pointer. Note: The module is silently ignored if it has not yet caused a card to be instantiated. Reimplemented from CCAENModule.

void CCAENV785::Read (  DAQWordBufferPtr &  rBuffer  )  [virtual]

Function: Reads an event from the card. Parameters: rBuffer  DAQWordBufferPtr& [modified] Pointer like object to the target data buffer. data will be read from the ADC to the location 'pointed to' rBuffer. Returns: DAQWordBufferptr updated buffer pointer after the read. Note: The module is silently ignored if the card has not been instantiated yet. Reimplemented from CCAENModule. Definition at line 369 of file CCAENV785.cpp. References CCAENModule::Read().

void CCAENV785::setCard (  CAENcard *  am_pCAENcard  )  [inline, protected]

Reimplemented from CCAENModule. Definition at line 363 of file include/CCAENV785.h. References m_pCAENcard.

void CCAENV785::setCard (  CAENcard *  am_pCAENcard  )  [inline, protected]

Reimplemented from CCAENModule. Definition at line 363 of file CCAENV785.h. References m_pCAENcard.

---

Member Data Documentation

bool CCAENV785::m_fMultiEvent [private]

true if multievent mode. Reimplemented from CCAENModule. Definition at line 336 of file include/CCAENV785.h.

CAENcard* CCAENV785::m_pCAENcard [private]

Pointer to module driver. Reimplemented from CCAENModule. Definition at line 335 of file include/CCAENV785.h.

CAENcard* CCAENV785::m_pCAENcard [private]

Pointer to module driver. Reimplemented from CCAENModule. Definition at line 335 of file CCAENV785.h. Referenced by getCard(), and setCard().

---

The documentation for this class was generated from the following files:

• CCAENV785.h
• include/CCAENV785.h
• CCAENV785.cpp
• src/CCAENV785.cpp

---
