CScalerBank Class Reference

#include <CScalerBank.h>

Inheritance diagram for CScalerBank:

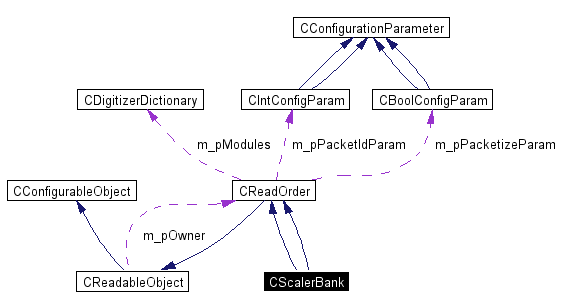

[legend]Collaboration diagram for CScalerBank:

[legend]List of all members.

Public Member Functions
	CScalerBank (CTCLInterpreter *pInterp, CDigitizerDictionary *pDictionary)
virtual	~CScalerBank ()
ULong_t *	Read (ULong_t *pBuffer)
	CScalerBank (CTCLInterpreter *pInterp, CDigitizerDictionary *pDictionary)
virtual	~CScalerBank ()
ULong_t *	Read (ULong_t *pBuffer)
Private Member Functions
	CScalerBank (const CScalerBank &aCScalerBank)
CScalerBank &	operator= (const CScalerBank &aCScalerBank)
int	operator== (const CScalerBank &aCScalerBank) const
int	operator!= (const CScalerBank &aCScalerBank) const
	CScalerBank (const CScalerBank &aCScalerBank)
CScalerBank &	operator= (const CScalerBank &aCScalerBank)
int	operator== (const CScalerBank &aCScalerBank) const
int	operator!= (const CScalerBank &aCScalerBank) const

---

Detailed Description

Encapsulates a scaler bank. Scaler banks are objects that readout an ordered list of scalers. They are like ReadOrder objects, but they supply an {additional} Read member that can read data into an ordinary UShort_t* buffer rathern than into one of the specialized NSCL data buffer types.

Definition at line 45 of file CScalerBank.h.

---

Constructor & Destructor Documentation

CScalerBank::CScalerBank (  CTCLInterpreter *  pInterp, CDigitizerDictionary *  pDictionary )

Construct a scaler bank. All the real work is done in the base class: Parameters: pInterp  CTCLInterpreter* [in] The interpreter in which the bank management commands will be registered. pDictionary  CDigitizerDictionary* [in] The module dictionary that maintains the set of modules elligible to be readout. Note that this dictionary must be one which contains only objects that are derived from CScalerModule. This is required because only those have the read member needed. If a non scaler module is inserted, this is detected and complained about at read time. Definition at line 33 of file CScalerBank.cpp. References pDictionary(), and pInterp().

CScalerBank::~CScalerBank (   )  [virtual]

Destroys a scaler bank. All the real work is done by the base class. Definition at line 44 of file CScalerBank.cpp.

CScalerBank::CScalerBank (  const CScalerBank &  aCScalerBank  )  [private]

CScalerBank::CScalerBank (  CTCLInterpreter *  pInterp, CDigitizerDictionary *  pDictionary )

virtual CScalerBank::~CScalerBank (   )  [virtual]

CScalerBank::CScalerBank (  const CScalerBank &  aCScalerBank  )  [private]

---

Member Function Documentation

int CScalerBank::operator!= (  const CScalerBank &  aCScalerBank  )  const [private]

int CScalerBank::operator!= (  const CScalerBank &  aCScalerBank  )  const [private]

CScalerBank& CScalerBank::operator= (  const CScalerBank &  aCScalerBank  )  [private]

CScalerBank& CScalerBank::operator= (  const CScalerBank &  aCScalerBank  )  [private]

int CScalerBank::operator== (  const CScalerBank &  aCScalerBank  )  const [private]

int CScalerBank::operator== (  const CScalerBank &  aCScalerBank  )  const [private]

ULong_t* CScalerBank::Read (  ULong_t *  pBuffer  )

ULong_t * CScalerBank::Read (  ULong_t *  pBuffer  )

Reads data from the scaler banks, putting it into the buffer passed in. Parameters: pBuffer  ULong_t* [out] Pointer to the place to put the scaler data. Returns: ULong_t* a Pointer to the buffer following the data. Exceptions: bad_cast  exception if a module is in the readout list that is not a CScalerModule. Definition at line 65 of file CScalerBank.cpp. References CReadOrder::ModuleIterator, CScalerModule::Read(), CReadOrder::readerbegin(), and CReadOrder::readerend().

---

The documentation for this class was generated from the following files:

• CScalerBank.h
• include/CScalerBank.h
• CScalerBank.cpp
• src/CScalerBank.cpp

---
