DAQThreadRecursiveMutex Class Reference

Provides methods for manipulating a recursive mutex. More...

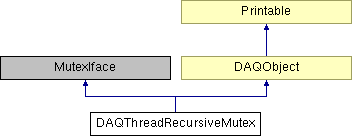

Inheritance diagram for DAQThreadRecursiveMutex::

List of all members.

Public Methods
	DAQThreadRecursiveMutex ()
	Constructor. More...
	~DAQThreadRecursiveMutex ()
	Destructor. More...
int	Lock ()
	Lock mutex. More...
int	TryLock ()
	Try to lock mutex. More...
int	UnLock ()
	Try to unlock mutex. More...
bool	IsLocked ()
	Test if the mutex is locked. More...
int	UnLockCompletely ()
	Completely unlock the mutex. More...
virtual void	PrintEyeCatcher (ostream &)
	Print an eye catcher. More...
Protected Attributes
daqthread_mutex_t	thrdmutex
	The mutex. More...
daqthread_mutex_t	monitormutex
	The monitor mutex. More...
daqthread_t	owningthread
	The thread that owns this mutex. More...
unsigned int	lockdepth
	The depth to which this mutex has been locked. More...
Friends
class	DAQThreadCond

---

Detailed Description

The DAQThreadRecursiveMutex class provides methods that implement a recursive mutex. A recursive mutex is capable of being locked multiple times by the same thread without blocking. Other threads will block on the mutex until the owning thread unlocks the mutex to a recursive depth of zero.

Author:

Eric Kasten

Version:

0.4.0

---

Constructor & Destructor Documentation

DAQThreadRecursiveMutex::DAQThreadRecursiveMutex (  )

Basic constructor method for this class. Parameters: None   Returns: this

DAQThreadRecursiveMutex::~DAQThreadRecursiveMutex (  )

Destructor method for this class. Parameters: None   Returns: None

---

Member Function Documentation

bool DAQThreadRecursiveMutex::IsLocked (  )

Tests if the mutex is locked and returns true if it is. Parameters: None   Returns: If the mutex is locked. Return values: true   if the mutex is locked. false   if the mutex isn't locked.

int DAQThreadRecursiveMutex::Lock (  )

Attempts to lock the mutex. This method will block if the mutex has been locked by another thread and that thread does not currently own the mutex. Parameters: None   Returns: When the mutex can be locked by a requesting thread Return values: 0   if the lock was successful. <0   if the lock was unsuccessful.

void DAQThreadRecursiveMutex::PrintEyeCatcher (  ostream & aStream )  [virtual]

Print an eye catcher for this mutex. Parameters: aStream   An ostream object to which to print. Returns: None Reimplemented from DAQObject.

int DAQThreadRecursiveMutex::TryLock (  )

Attempts to lock the mutex. This method doesn't block if the mutex has been locked by another thread. Parameters: None   Returns: When the mutex can be locked by a requesting thread Return values: 0   if the lock was successful. <0   if the lock was unsuccessful.

int DAQThreadRecursiveMutex::UnLock (  )

Attempts to unlock the mutex. Only the owning thread can unlock the mutex. Parameters: None   Returns: When the mutex can be unlocked by a requesting thread Return values: 0   if the unlock was successful. <0   if the unlock was unsuccessful (owned by another thread).

int DAQThreadRecursiveMutex::UnLockCompletely (  )

Completely unlocks the mutex such that the recursive locking level is set to zero. This can only be done by the owning thread. Parameters: None   Returns: If the mutex could be unlocked. Return values: 0   if the mutex could be unlocked. <0   if the mutex couldn't be unlocked.

---

Member Data Documentation

DAQThreadRecursiveMutex::lockdepth [protected]

The depth to which the owning thread has locked this mutex.

DAQThreadRecursiveMutex::monitormutex [protected]

The monitor mutex that protects the recursive structures used to implement the recursive mutex.

DAQThreadRecursiveMutex::owningthread [protected]

The thread that owns this mutex. This thread is allowed to lock the mutex repetively.

DAQThreadRecursiveMutex::thrdmutex [protected]

The actual mutex that is locked (recursively).

---

The documentation for this class was generated from the following files:

• DAQThreadRecursiveMutex.cc
• DAQThreadRecursiveMutex.h

---
