Using NCSL DAQ Software to Readout a CAEN V785 Peak-Sensing ADC
Prev	Chapter 2. Setting up the software	Next

2.2. SpecTcl Histogramming Software

The procedure for setting up SpecTcl parallels that of settting up the Readout software:

Copy the skeleton for SpecTcl into an empty directory
Modify this skeleton to unpack the raw events SpecTcl gets from the online system or from eventfiles into a set of parameters.
Modify the Makefile to incorporate your changes into a tailored SpecTcl, and compile the tailored SpecTcl
Test your SpecTcl on event data acquired by your Readout software.

2.2.1. How to copy the SpecTcl skeleton

At the NSCL, current versions of the SpecTcl skeleton are located in the directory /usr/opt/spectcl/current/Skel. The following commands will create a new directory and obtain a copy the SpecTcl skeleton, called MySpecTclApp:

mkdir -p ˜/experiment/spectcl
cd ˜/experiment/spectcl
cp /usr/opt/spectcl/current/Skel/* .

2.2.2. How to modify the skeleton to unpack events.

SpecTcl relies on a logical pipeline of event processors to unpack data from the raw event into parameters. Each event processor has access to the raw event, and an output array-like object. This provides each event processor with access to the raw event and any data unpacked by event processors that are ahead of it in the pipeline.

Daniel Bazin has written an extension to SpecTcl called TreeParam. This extension superimposes structure on top of the array-like output object which makes access to the event array much more natural. Beginning with SpecTcl version 3.0, the TreeParam extension has become a supported part of SpecTcl.

Dr. Bazin's TreeParam software also includes a very nice front end Graphical User Interface (GUI) for SpecTcl that makes the creation and manipulation of spectra, gates and other SpecTcl object much more user-friendly than raw SpecTcl. This GUI was also incorporated into the base SpecTcl program beginning with version 3.0, it has been extensively modified for version 3.1.

In order to unpack data from our event segment, we need to write an event processor that:

Declares the appropriate tree parameter members.
Locates a packet with our packet id (0xff00).
Unpacks the data in that packet into the appropriate treeparameter members.

Our event processor MyEventProcessor is defined in the file MyEventProcessor.h, and implemented in MyEventProcessor.cpp. The header looks like this:

Example 2-3. MyEventProcessor.h - header for the event processor.

#ifndef __MYEVENTPROCESSOR_H
#define __MYEVENTPROCESSOR_H

#include <EventProcessor.h>                      //
#include <TranslatorPointer.h>	                 //
#include <histotypes.h>                          //


// Forward class definitions:

class CTreeParameterArray;
class CAnalyzer;		                 //
class CBufferDecoder;
class CEvent;




class MyEventProcessor : public CEventProcessor //
{
private:
  CTreeParameterArray&  m_rawData;              //
  int                   m_nId;                  //
  int                   m_nSlot;                //
public:
  MyEventProcessor(int         ourId,
		   int         ourSlot,	        //
		   const char* baseParameterName);
  ~MyEventProcessor();		                   //

  virtual Bool_t operator()(const Address_t pEvent,
			    CEvent&         rEvent,   // (11)
			    CAnalyzer&      rAnalyzer,
			    CBufferDecoder& rDecoder);

private:
  void unpackPacket(TranslatorPointer<UShort_t> p);  // (12)

};

#endif

The numbers in the discussion below refer to the numbers in the example above.

All event processors must be derived from the base class CEventProcessor. To do this requires that we include the header for that class.

The TranslatorPointer class creates pointer-like objects that will do any byte order transformations required between the system that created the event files and the system running SpecTcl. This class is a template class, therefore it is necessary to include the header for it as one of the parameters to a member function of ours is a TranslatorPointer<UShort_t>.

The histotypes.h header defines types that insulate SpecTcl from differences in the data types in each system. We use these extensively in the header and therefore must include the header here.

Where the compiler does not need to know the internal definitions of a class in a header it is a good idea to create forward references to those classes. This can be done when all objects of a class are pointers or references. Doing this decreases the likelyhood that we wind up with a system that has circular include references.

As previously mentioned, our event processor class must be derived from a CEventProcessor. This class definition does that.

The TreeParameter package provides both individual parameters (CTreeParameter), and arrays of parameters, (CTreeParameterArray). In this application we will create a CTreeParameterArray that will have one element for each channel of the CAEN V785. This data member will be a reference to that array. A reference in C++ is a variable that operates like a pointer with the notation of something that is not a pointer. For example, if I have a pointer p to a structure containing an element b, I would access that element using the notation: p->b. If I have a reference r to the same structure, I would access element b using the notation r.b.

The m_nId member variable will be used to hold the id of the packet our event processor is supposed to decode.

The m_nSlot member variable will be used to hold the geographical address of the CAEN V785 we are unpacking. This member is used as a sanity check. Sanity checks double check that the code you write is operating the way you think it should. In this case, if the packet that matches our id does not contain data that is from the ADC with the correct geographical address, we know that something has gone seriously wrong. It is a good practice to employ sanity checks whenever you can think of one.

The constructor is called to initialize the members of an object of class MyEventProcessor. It's parameters are as follows:

ourId: Provides the packet id that this object will locate and unpack. By parameterizing this, our class can unpack more than one packet id as long as the packet body is data from a single CAEN V785 ADC
ourSlot: Provides the slot number of the ADC we expect to see in the packet of type ourId. This enables us to perform the sanity check we described earlier.
baseParameterName: CTreeParameter objects have a parameter name, this parameter name becomes the SpecTcl parameter name. In the case of CTreeParameterArray objects, the parameter name becomes a base name and actual parameters have a period and an element number appended to this basename. For example, a ten parameter array with the base name george might create SpecTcl parameters george.00, george.01 ... george.09. The baseParameterName will be used to set the CTreeParameterArray base name.

A destructor is necessary when classes use dynamcially allocated data, in order to prevent memory leaks when an object is destroyed.

(11)

operator() allows objects of a class to be treated as functions that can be called. Objects of this sort behave as functions that can retain state between calls. The function call operator of a CEventProcessor is a virtual function which means that the appropriate function for pointer to an object derived from CEventProcessor will be selected at run time from the actual class of the object the pointer points to (in this case a MyEventProcessor. The function call operator for classes derived from CEventProcessor is expected to process the raw event, and already unpacked data producing new unpacked data. The event processor should return a kfTRUE if it succeeded well enough that the event pipeline can continue to run or kfFALSE if SpecTcl should abort the event pipeline and not histogram the event.

(12)

When we implement the operator() function, we will have it hunt through the body of the raw event for a packet that matches the id stored in m_nId member variable. When we find that packet, we'll want to unpack it into our m_rawData tree parameter array. To make the code simpler to understand, we plan to break off the actual unpacking of the packet into a utility function called unpackPacket.

The next step is to actually implement the class. The implementation of this class is shown in the next listing.

Example 2-4. Implementation of the MyEventProcessor class

#include <config.h>
#include "MyEventProcessor.h"            //
#include <TreeParameter.h>
#include <Analyzer.h>                    //
#include <BufferDecoder.h>
#include <Event.h>

#include <iostream>

#include <TCLAnalyzer.h>                  //

#ifdef HAVE_STD_NAMESPACE
using namespace std;
#endif
static const ULong_t CAEN_DATUM_TYPE(0x07000000);
static const ULong_t CAEN_HEADER(0x02000000);
static const ULong_t CAEN_DATA(0);
static const ULong_t CAEN_TRAILER(0x04000000);
static const ULong_t CAEN_INVALID(0x06000000);

static const ULong_t CAEN_GEOMASK(0xf8000000);
static const ULong_t CAEN_GEOSHIFT(27);
static const ULong_t CAEN_COUNTMASK(0x3f00);   //
static const ULong_t CAEN_COUNTSHIFT(8);

static const ULong_t CAEN_CHANNELMASK(0x3f0000);
static const ULong_t CAEN_CHANNELSHIFT(16);
static const ULong_t CAEN_DATAMASK(0xfff);


static inline ULong_t getLong(TranslatorPointer<UShort_t>& p)  //
{
  ULong_t high   = p[0];
  ULong_t low    = p[1];
  return (high << 16) | low;
}

MyEventProcessor::MyEventProcessor(int ourId,
				   int ourSlot,
				   const char* baseParameterName) :
  m_rawData(*(new CTreeParameterArray(string(baseParameterName),
				      4096, 0.0, 4095.0, string("channels"),
				      32, 0))),    //
  m_nId(ourId),
  m_nSlot(ourSlot)
{
}



MyEventProcessor::~MyEventProcessor()
{
  delete &m_rawData;		//
}

Bool_t
MyEventProcessor::operator()(const Address_t pEvent,
			     CEvent&         rEvent,
			     CAnalyzer&      rAnalyzer,
			     CBufferDecoder& rDecoder)
{
  TranslatorPointer<UShort_t> p(*(rDecoder.getBufferTranslator()),
				pEvent);
  UShort_t                    nWords = *p++;           //
  CTclAnalyzer&               rAna((CTclAnalyzer&)rAnalyzer);
  rAna.SetEventSize(nWords*sizeof(UShort_t));
  nWords--;			// Remaining words after word count.

  while (nWords) {
    UShort_t nPacketWords = *p;                       //
    UShort_t nId          = p[1];
    if (nId == m_nId) {                               //
      try {                                           // (11)
	unpackPacket(p);                              // (12)
      }
      catch(string msg) {
	cerr << "Error Unpacking packet " << hex << nId << dec
	     << " " << msg << endl;
	return kfFALSE;                               // (13)
      }
      catch(...) {
	cerr << "Some sort of exception caught unpacking packet " << hex << nId
	     << dec << endl;
	return kfFALSE;
      }
    }
    p      += nPacketWords;                           // (14)
    nWords -= nPacketWords;
  }
  return kfTRUE;		                     // (15)
}

void
MyEventProcessor::unpackPacket(TranslatorPointer<UShort_t> pEvent)
{
  pEvent += 2;			                    // (16)

  ULong_t header      = getLong(pEvent);
  if ((header & CAEN_DATUM_TYPE) != CAEN_HEADER) {   // (17)
    throw string("Did not find V785 header when expected");
  }
  if (((header & CAEN_GEOMASK) >> CAEN_GEOSHIFT) != m_nSlot) {
    throw string("Mismatch on slot");
  }

  Long_t nChannelCount = (header & CAEN_COUNTMASK) >> CAEN_COUNTSHIFT;

  pEvent += 2;                                       // (18)
  for (ULong_t i =0; i < nChannelCount; i++) {       // (19)
    ULong_t channelData = getLong(pEvent);
    int     channel     = (channelData & CAEN_CHANNELMASK) >> CAEN_CHANNELSHIFT;
    int     data        = (channelData & CAEN_DATAMASK);
    m_rawData[channel] = data;

    pEvent += 2;
  }

  Long_t trailer = getLong(pEvent);
  trailer       &= CAEN_DATUM_TYPE;
  if ((trailer != CAEN_TRAILER) ) { // (20)
    throw string("Did not find V785 trailer when expected");
  }

}

The numbers in the annotations below refer to the numbered elements of the listing above.

Since this compilation unit implements the MyEventProcessor class, it is necessary for the file to have access to the header for that class.

The header for MyEventProcessor declared several classes to be forward defined. Since these classes will be manipulated in the implementation module, the headers for these classes must now be #include-ed.

The CAnalyzer reference that will be passed in to the operator() member function is really a reference to a CTclAnalyzer. Since we will be calling member functions of CTclAnalyzer directly, we must include the header of that class as well

This section of code defines sevaral constants that help us unpack data longwords from the CAEN V785 ADC. See the hardware manual for that module for a detailed description of the format of the buffer produced by this module. Whenever possible avoid magic numbers in code in favor of symbolic constants as shown in the listing. Symbolic constants make the code easier to understand for the next person and for you if you have to look at it a long time later. The constants are:

CAEN_DATUM_TYPE

This is a mask of of the bits that make up the field in the V785 data that describes what each longword is.

CAEN_HEADER

If the bits selected by the CAEN_DATUM_TYPE are equal to CAEN_HEADER the longword is an ADC header word. Thus you can check for header-ness with code like:

if ((data & CAEN_DATUM_TYPE) == CAEN_HEADER) { ...

CAEN_DATA

CAEN_DATA selects ADC data longwords in a mannger analagous to the way that CAEN_HEADER selects header words. If the bits of a longwords of V785 data are anded with CAEN_DATUM_TYPE, and the result is CAEN_DATA the longword contains conversion data.

CAEN_TRAILER

If a longword of CAEN V785 data, anded with the CAEN_DATUM_TYPE mask is CAEN_TRAILER, the longword is an ADC trailer and indicates the end of an event from the module.

CAEN_GEOMASK and CAEN_GEOSHIFT

These two values can be used to extract the Geographical Address field from data returned by the CAEN V785 ADC. The Geographical Address is what we have been loosely calling the slot of the ADC. The following code snippet is a recipe for getting the geographical address from any of the longwords that the module returns:

unsigned long slotNumber = (data & CAEN_GEOMASK) >> CAEN_GEOSHIFT;

CAEN_COUNTMASK and CAEN_COUNTSHIFT

These two values can be used to return the number of channels present in an event from the CAEN V785 adc. The number of channels present in the event is available in the header word for the ADC data. Given a header word, this information can be extracted as follows:

unsigned long channelCount = (header & CAEN_COUNTMASK) >> CAEN_COUNTSHIFT;

CAEN_CHANNELMASK and CAEN_CHANNELSHIFT

These two values are used to extract the channel number of a conversion from a conversion word (type CAEN_DATA). The code below shows how to do this:

unsigned long channelNumber = (datum & CAEN_CHANNELMASK) >> CAEN_CHANNELSHIFT;

CAEN_DATAMASK

CAEN_DATAMASK can be used to extract the conversion value from an adc conversion longword (longword with type CAEN_DATA). For example:

unsigned long conversion = datum & CAEN_DATAMASK;

The inline function getLong returns a longword of data pointed to by a TranslatorPointer<UShort_t>. The longword is assumed to be big endian by word, that is the first word contains the high order bytes. The bytes within each word are appropriately managed by the TranslatorPointer object. Inline functions are preferred to #define macros in C++. The usually have the same execution efficiency without some of the strange argument substitution problems that a #define macro may have.

The main task of the constructor is to initialize data elements. In C++ where possible, this should be done with initializers, rather than with code in the body of the constructor. Note, however, that regardless of the order of initializers in your constructor, they are executed in the order in which the members are declared in the class definition. The only initializer worth explaining in this code is the one for the CTreeParameterArray& member data m_rawData. This constructor dynamically allocates a new object and points the reference at it. The parameters of the constructor are in turn the base name of the array, The preferred number of bins for spectra created on this parameter, the low and high limits of the range of values this parameter can have, the units of measure of the parameter, the number of elements in the array and the index of the base element of the array (it is possible to give a CTreeParameterArray any integer base index desired.

This section of code should appear in essentially all event processor operator() functions. p is an object that acts very much like a UShort_t*. However it transparently does any byte order swapping required between the binary representations of the system that created the buffer and the system that is runing SpecTcl. This "pointer" is then used to extract the size of the body of the event from the buffer. One of the responsibilities of at least one event processor is to report the size of the event in bytes to the SpecTcl framework. The CAnalyzer object reference rAnalyzer is actually a reference to an object of type CTclAnalyzer. This object has a member function called SetEventSize which allows you to inform the framework of the event size. Since any event processor can and in many cases should be written to run with little or no knowledge of other event processors in the pipeline, by convention we have every event processor informing the framework of theevent size in this way.

This code extracts the packet size and id of each packet encountered in the while loop. The size is used to skip to the next packet in the event.

This if checks for packets that match the id we've been told to unpack (m_nId).

(11)

A try .. catch block in C++ executes code in the body of the try block. If the code raises an exception, a matching exception handling catch block is searched for at this an higher call levels. If found that catch block's code is executed. If not found, the program aborts. This block allows us to catch errors from the unpackEvent function and turn them into pipeline aborts.

(12)

If the event we are unpacking contains the packet our processor has been told to match, unpackPacket is called to unpack the body of our packet into m_rawData.

(13)

If unpackPacket fails a sanity test it will throw a string exception. This catch block will then execute, printing out an appropriate error message to stderr and returning kfFALSE which will cause the remainder of the event processing pipeline to be aborted, and the event to be thrown out by the histogrammer. We have also supplied a catch all catch block (catch (...)). If an unexpected exception is thrown from member functions called by unpackPacket (for example TranslatorPointer members), this will report them as well.

(14)

The packet size is used to point p to the next packet in the event, until we run out of packets.

(15)

Returns kfTRUE indicating that SpecTcl can continue parameter generation with the next element of the event processing pipeline or commit the event to the histogramming subsystem if this was the last event processor.

(16)

This code in MyEventProcessor::unpackPacket adjusts the TranslatorPointer pEvent to point to the body of the packet. This should be the first word of data read from the ADC itself. For the CAEN V785, this should be a longword of header information.

(17)

Two sanity checks are performed on the header. First the type of the longword is analyzed and an exception is thrown if the longword is not a header longword. Second, the geographical address of the V785 is extracted and a string exception is thrown if the header is not the header for the geographical address of the module we've been told to expect (m_nSlot). If these sanity checks pass, the number of channels of event data read by the module for the event are extracted from the header and stored in nChannelCount.

(18)

Once it's clear that the header is really a header for the correct module, we adjust pEvent to point to the next longwors which should be the first of nChannelCount longwords containing conversion information.

(19)

This loop decodes the nChannelCount longwords of data. The channel number and conversion values are extracted, and stored in the appropriate element of the m_rawData CTreeParameterArray. A useful exercise for the reader would be to add an appropriate sanity check for this section of code. One useful check would be to ensure that the data words really are data words, that is that their type is CAEN_DATA.

(20)

Ensures that the longword following the last channel data longword is a V785 trailer longword.

Once we have written our event processor, we need to create an instance of it and add it to the event processing pipeline. This is done by modifying the MySpecTclApp.cpp file. Edit this file and locate the section of code where header files are #include-ded. Add the italicized line as shown.

#include <config.h>
#include "MySpecTclApp.h"
#include "EventProcessor.h"
#include "TCLAnalyzer.h"
#include <Event.h>
#include <TreeParameter.h>
#include "MyEventProcessor.h"

This makes the definition of the event processor we created known to this module.

Locate the code that creates the analysis pipeline. In the unmodified MySpecTclApp.cpp file this will look like:

void
CMySpecTclApp::CreateAnalysisPipeline(CAnalyzer& rAnalyzer)
{

#ifdef WITHF77UNPACKER
  RegisterEventProcessor(legacyunpacker);
#endif

    RegisterEventProcessor(Stage1, "Raw");
    RegisterEventProcessor(Stage2, "Computed");
}

Rewrite this section of code so that it looks like this:

void
CMySpecTclApp::CreateAnalysisPipeline(CAnalyzer& rAnalyzer)
{
  RegisterEventProcessor(*(new MyEventProcessor(0xff00, 10,
						"mydetectors.caenv785")));
}

This creates a new event processor that will look for Id 0xff00, expect it to contain data from geographical address 10, and unpack this data into the tree parameter array with a base name of mydetectors.caenv785.

2.2.3. Building the tailored SpecTcl

To build our the SpecTcl we have tailored for our events, we need to modify the Makefile to make it aware of our event processor, so that it will compile and link it into our SpecTcl.

Edit Makefile. Locate the line that reads:

 OBJECTS=MySpecTclApp.o

Modify it to read as follows:

OBJECTS=MySpecTclApp.o MyEventProcessor.o

Now type:

make

to build the program. This should result in an executable file called SpecTcl.

2.2.4. Setting up SpecTcl Spectra

Run the version of SpecTcl you created. Four windows should pop up:

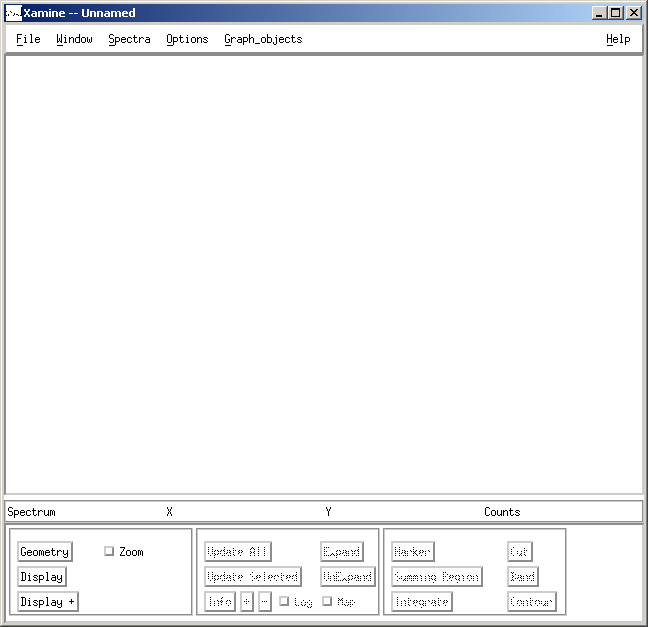

Xamine: Is a window that allows you to view and interact with the spectra that SpecTcl is histogramming.
TkCon: This is a command console that is modified from the work of Jeffrey Hobbs currently at ActiveState. You can type arbitrary Tcl/Tk and SpecTcl commands at this console. This software was released into the open source world under the BSD license.
SpecTcl: Is a button bar that is built on top of the Tk top level widget. Untailored, it has two buttons, Clear Spectra clears the counts in all spectra. Exit exits SpecTcl.
gui: Is a tree browser based interface that allows you to manipulate SpecTcl's primary objects, Spectra, Parameters, Gates, and Variables. The idea for this sort of interface is Daniel Bazin's, this interface, however does not bear any common code nor resemblence to his original work.

We will interact with the gui window to create an initial set of 1-d spectra, one for each channel of the adc. First lets look at the figure below.

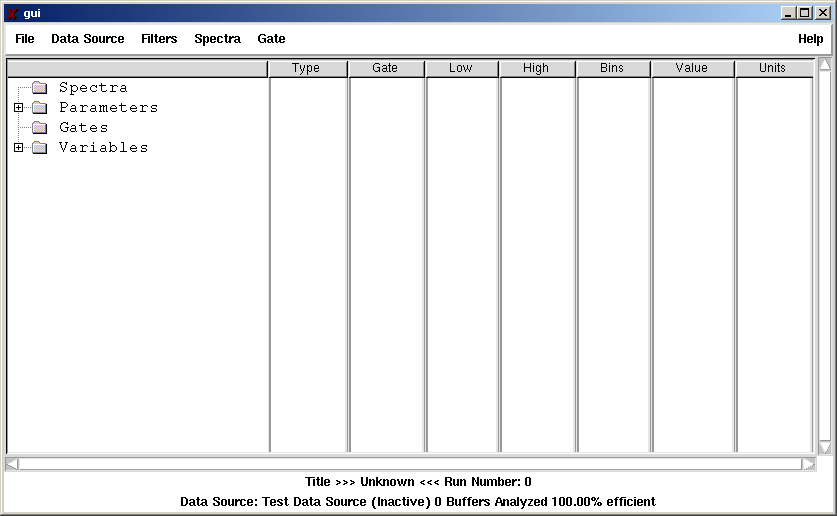

Figure 2-1. The GUI window as it first appears.

This shows a screenshot of the GUI just after it starts. Each top level folder contains or will contains the set of objects named by the folder. The Spectra folder will contain spectra. Folders that have a + to the left of them already contain objects. Since we did not delete the example tree parameters and variables in MySpecTclApp.cpp TreeVariable objects already exist. Parameters have been defined, both by our event processor and by the samples in the oritinal MySpecTclApp.cpp

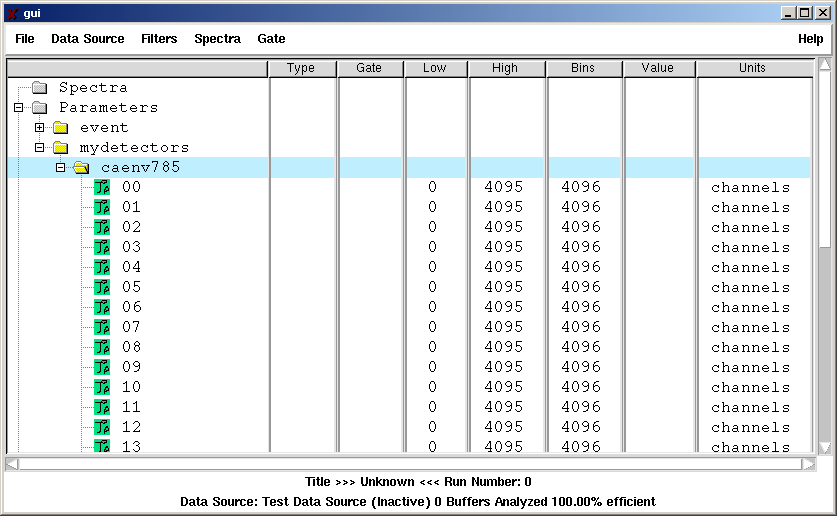

Click on the + to the left of the Parameters folder. You should see two subfolders. named event and mydetectors. The first of these contains parameters that were created by the examples in MySpecTclApp.cpp. The second contains parameters we created in our event processor. Recall that our basename was mydetectors.caenv785, the gui creates a new folder level for each period in a name. Double clicking on mydetectors opens it revealing the caenv785 subfolder we expect. This subfolder contains all the elements of the CTreeParameterArray that was created when we constructed our event processor. Double clicking on the caenv785 subfolder gives the following:

Figure 2-2. The Gui with folders open to show parameter array elements

You can use the scrollbar at the right of the window to scroll up and down the through the list of parameters. You can also resize the window to make more parameters show simultaneously.

We will now use the Spectra folder context menu to create an array of spectra, one for each of the parameters in the array mydetectors.caenv785. Every folder has a context menu, as do most objects. A context menu is a menu that pops up under the mouse when you hold downt the right mouse button. Context menu entries are selected by moving the mouse pointer over one of the menu entries and releasing the right mouse button.

Select the New... context menu entry from the Spectra context menu. This brings up a new window shown in the figure below:

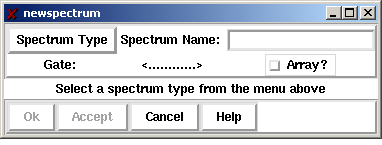

Figure 2-3. The Spectrum creation dialog box

This dialog has several controls. The button labelled Spectrum Type accesses a pull down menu of spectrum type choices. The entry next to the label Spectrum Name: provides a space to type in the name of the spectrum. The Array? checkbutton is an idea from the original Tree Parameter Gui by Dr. Bazin. This button allows you to simultaneously create 1-d spectra for each element of a parameter array, by providing a definition for a spectrum for a single element. We'll use this.

Type mydetectors.caenv785 in the Spectrum Name: entry. Check the Array? checkbutton. Pull down the Spectrum Type menu and select 1-d. The spectrum creation dialog modifies itself to be a 1-d spectrum editor:

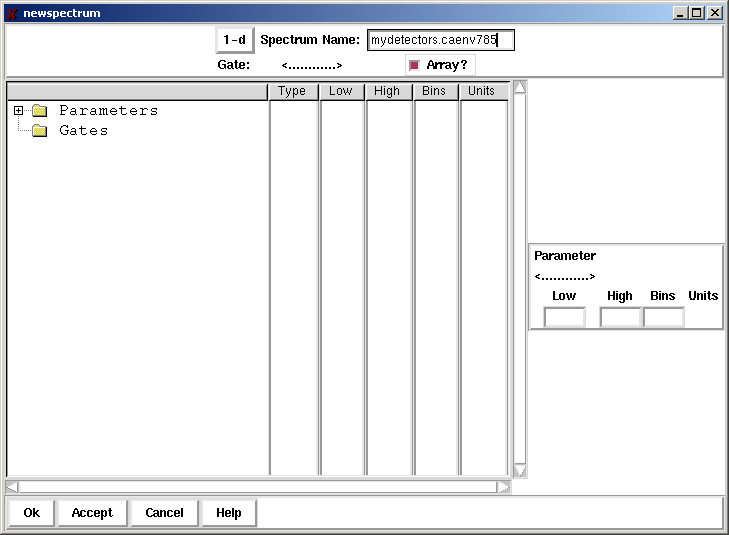

Figure 2-4. 1-d Spectrum editor.

The left half of this editor is just the SpecTcl object browser restricted to display only the set of objects that are relevant to constructing spectra, the parameters and the gates. A parameter is required, a gate is optional. Open the Parameters folder to display the mydetectors.caenv785 parameter array. The double click on any parameter from that array, say mydetectors.canv785.00. This parameter definition is loaded into the right side of the window. You can type modifications to the range and binning of the histogram. For now, we'll accept the defaults. Create the spectrum by clicking the Ok button at the bottom of the 1-d spectrum editor.

Note that in the main gui window, there is now a + to the left of the Spectra top level folder indicating that spectra have been defined. Open this folder to reveal the spectra we just made:

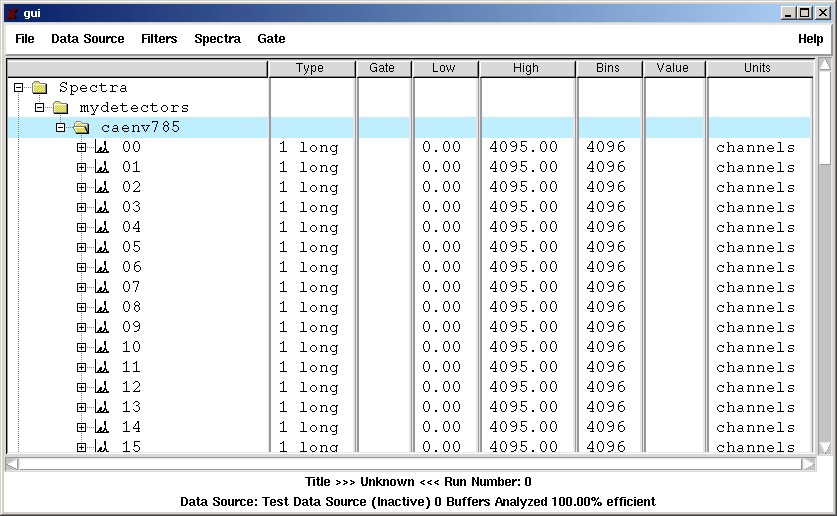

Figure 2-5. Created Spectra.

While this is not hard to do, it is annoying to have to do this each time we start SpecTcl. We will therefore save the current set of definitions in a definition file. On the GUI click the File->Save Menu entry. A file choice dialog will pop up. Type myspectra in its File name: entry and click Save.... From now on, whenever you start SpecTcl, you can load these definitions, by clicking the File->Restore... menu entry and selecting the myspectra.tcl file.

Next we'll want to setup Xamine so that we can actually see the spectra we create. The Xamine window looks like this:

Figure 2-6. Initial Xamine Window

The top part of the Xamine window has a menubar. The large central section has can be subdivided into panes. One (or more in the case of compatible 1-d) spectrum can be loaded into each pane. Below the spectrum display area is a status bar. The status bar will display information about the mouse pointer when it is located in a pane that has been loaded with a spectrum. Below the status bar, a set of commonly used functions are organized into several groups of buttons.

We will now:

Subdivide the spectrum display area into an array of panes, four rows down, by eight columns across.
Load the 32 1-d spectra we have just created into the panes.
Save the resulting configuration file as a window definition file so that it can be loaded again next time SpecTcl is run.

Locate the button in the left most box of buttons at the bottom of the screen labeled Geometry and click on it. This brings up the following dialog box:

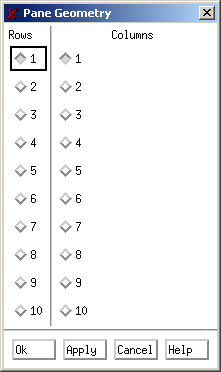

Figure 2-7. The Pane Geometry dialog

Click the 4 button in the left column labeled Rows. Click the 8 button in the right column labeled Columns. Click the Ok button at the bottom of he dialog. The dialog will disappear and the central part of the Xamine window will be subdivided as you requested. Notice how the upper left pane of the set of panes you just created appears pushed in? This pane is said to be selected. Many of the operations in the Xamine window operate on the selected pane. A single mouse click in a pane selects it. A double mouse click zooms the pane to fill the entire window. A double mouse click on the expanded pane unzooms the pane.

Lets load the spectrum mydetectors.caenv785.00 into the upper left pane. Click on the upper left pane to select it. Click the Display button. This brings up the spectrum choice dialog shown below:

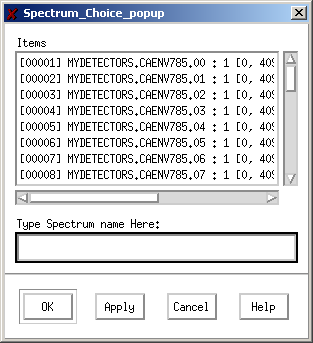

Figure 2-8. Spectrum Choice dialog

The Xamine title for a spectrum includes additional information about the spectrum. The leftmost part of the title, however is the spectrum name. Double click the top most entry [1] MYDETECTORS.CAENV785.00 : 1 [0, 4095 : 4096] {MYDETECTORS.CAENV785.00}. The spectrum chooser dialog disappears and the spectrum you selected is loaded into the upper left pane, which remains selected. Double click it to zoom, double click again to unzoom.

You could repeat this action 31 more times to load each pane with the desired spectrum. That would be painful. Loading a set of panes is a common enough activity that Xamine includes built in support for it. Click the second pane from the top left to select it. Click the Display + button. This brings up another Spectrum Chooser dialog. Single click on the second spectrum MYDETECTORS.CAENV785.01 : 1 .... Hit the enter key. Note that:

The dialog remains visible.
The selected pane is loaded with the spectrum you selected.
The selection advances to the next pane.

You can finish loading the panes by hitting the down arrow key to select the next spectrum and hitting enter. Repeat as needed to fill all the panes. When all panes are full, click the Cancel button to dismiss the dialog.

Now click on the Window->Write Configuration... menu selection. This will bring up a file selection dialog box. In the entry box labelled Filename:, append the text: MyWindows and click Ok. This creates a new file MyWindows.win that can be used to reload the window configuration you have just created. Window definition files, as these files are called, can be loaded using the Window->Read Configuration... menu selection.

Exit SpecTcl this is done either by clicking the Exit command on the button strip labeled SpecTcl, or by typing exit in the console window tkcon. Note that the File->Exit menu entry on the SpecTcl gui only exits the gui, leaving SpecTcl up and running.

Prev	Home	Next
Setting up the software	Up	Testing and Running the Software.
